Curved Hoods

The Curved Range Hood is designed to draw the eye and immerse you in a contemporary cooking space. The curve in our Curved hoods helps the range hood stand out among the rectangular shape of your cabinets. Made out of cabinet-grade plywood, this range hood will create a focal point and add style and elegance to your kitchen.

View Gallery Question & Answer

Hood Style: Curved Range Hood Construction: Cabinet-Grade Plywood With A White Maple Veneer Hood Dimensions: 30x30, 30x36, 30x48, 36x30, 36x36, 36x48, 42x30, 42x36, 42x48, 48x30, 48x36, 48x48, 54x30, 54x36, 54x48, 60x30, 60x36, 60x48

Trim: Classic (Adds 1.5 Inches To Hood Width), Flat (Adds 0.5 Inches To Hood Width, Block (Adds 1.5 Inches To Hood Width)

Colors: Painted, Finished

Curved Hood Styles

Explore our curated selection of hood styles designed to suit every style and space.

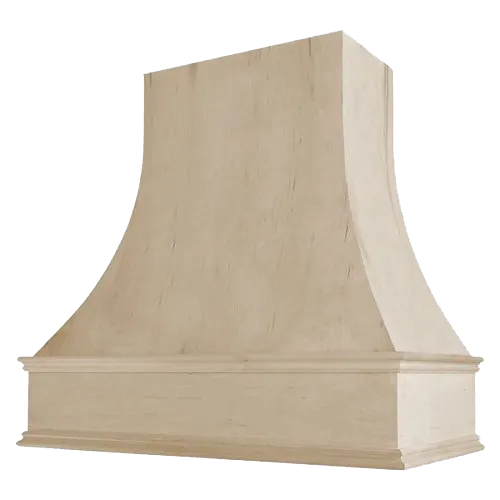

Curved

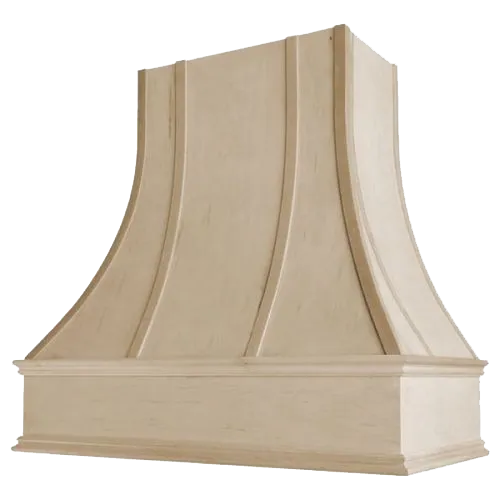

Curved With Strapping

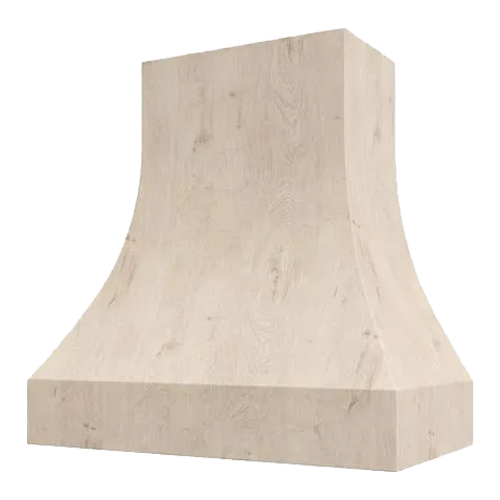

Curved Without Trim

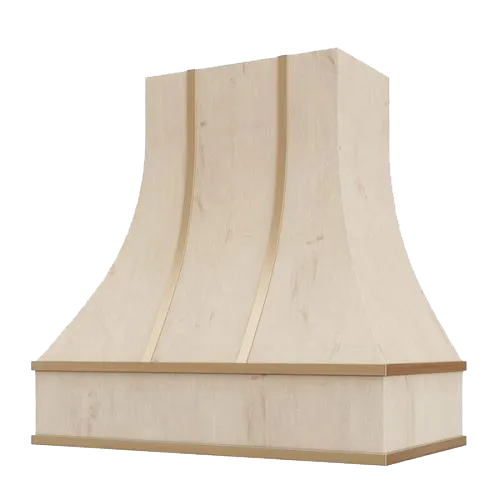

Curved With Brass Strapping

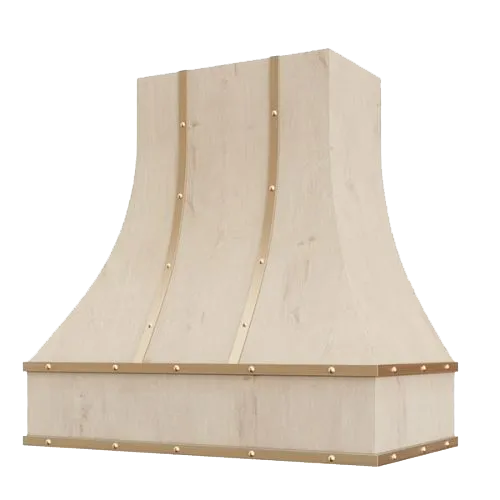

Curved With Brass Strapping & Buttons

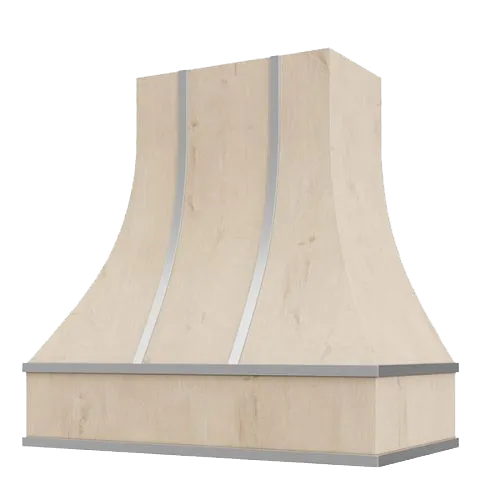

Curved With Steel Strapping

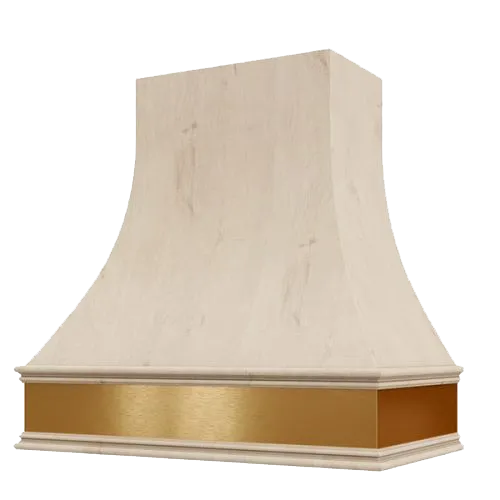

Curved With Brass Apron

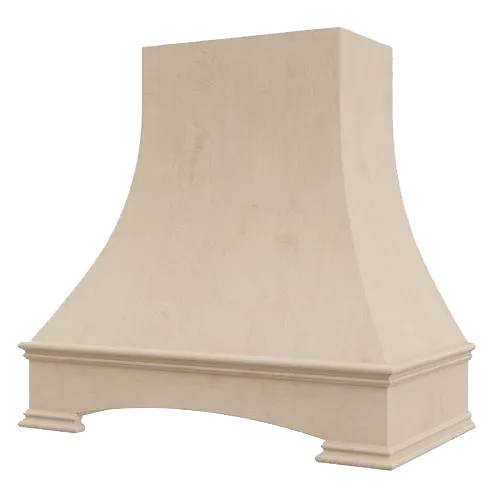

Curved With Arched Apron

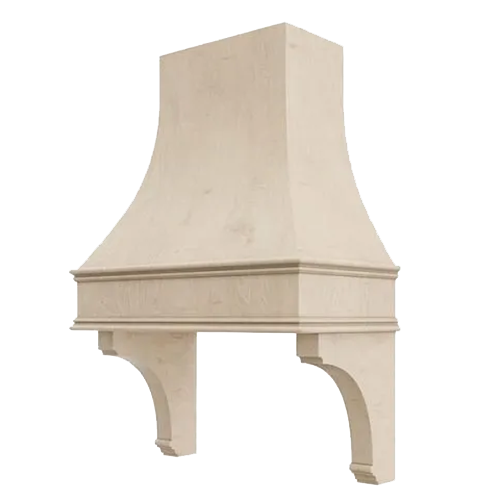

Curved Hood With Corbels

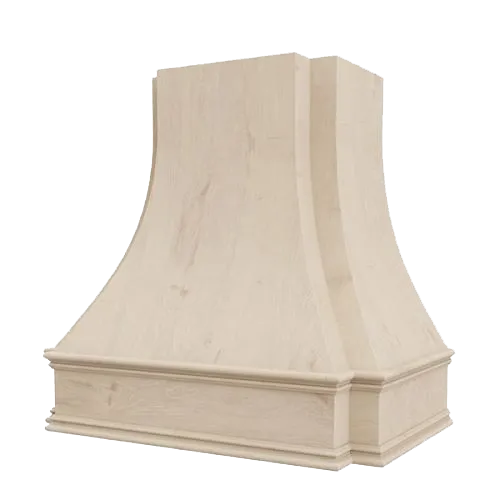

Double Curved

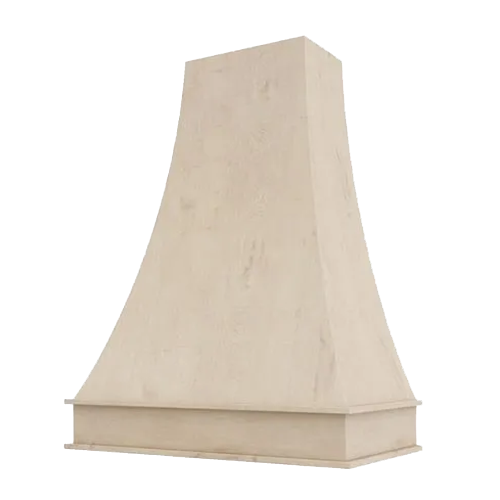

Curved Slim

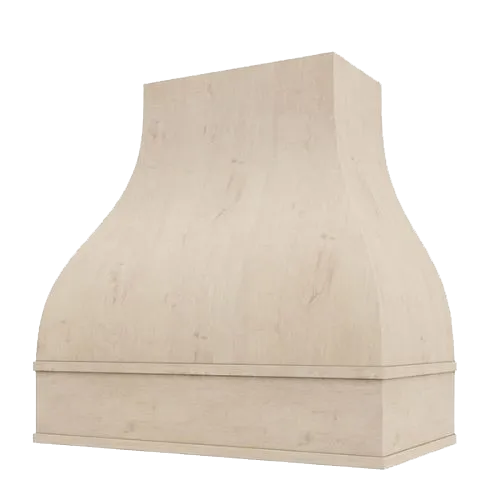

Bell Style Straight

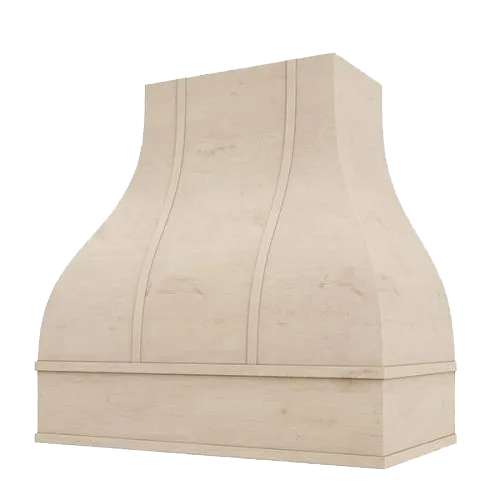

Bell Style With Strapping

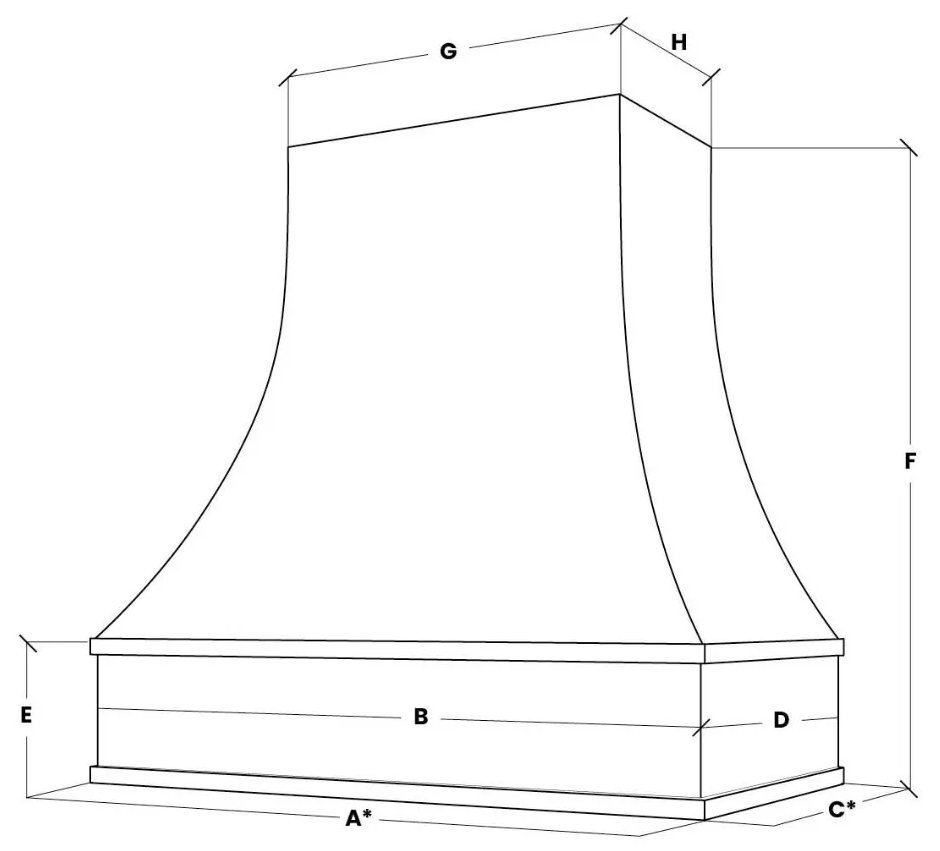

Curved Dimensions

*Hood style dimensions vary and are not standardized.

Model	B	D	E	F	G	H
3036	30	19.5	8.25	36	15	12
3636	36	19.5	8.25	36	21	12
4236	42	19.5	8.25	36	27	12
4836	48	19.5	8.25	36	33	12
5436	54	19.5	8.25	36	39	12
6036	60	19.5	8.25	36	45	12
3048	30	19.5	8.25	48	15	12
3648	36	19.5	8.25	48	21	12
4248	42	19.5	8.25	48	27	12
4848	48	19.5	8.25	48	33	12
5448	54	19.5	8.25	48	39	12
6048	60	19.5	8.25	48	45	12

A* Classic & Block Trim: B + 1.5
A* Flat Trim: B + 0.5
C* Classic & Block Trim: D + 0.5
C* Flat Trim: D + 0.25

Example: Curved with Block Trim shown for 3036 would be 31.5. All dimensions are in inches.
